Sonalert® SC628ANP

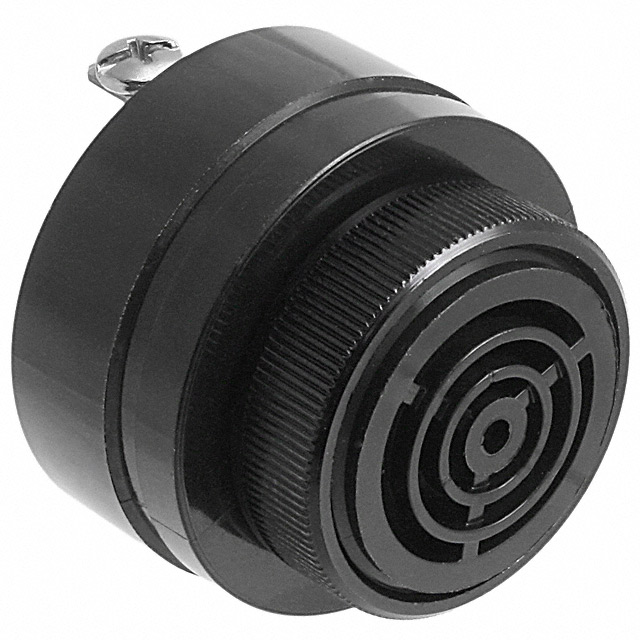

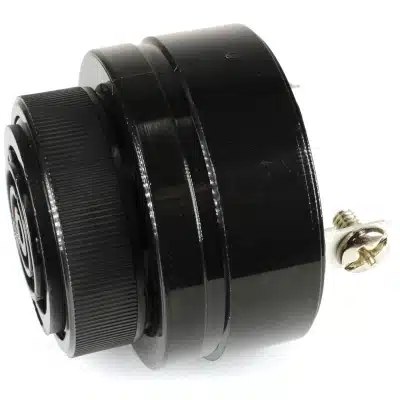

The Mallory Sonalert SC628ANP Audible Alarm is a high-output, panel-mounted electronic sounder designed to provide a distinctive, fast-pulsing audible warning for electrical equipment and monitoring systems.
Operating across a versatile 6–28V AC/DC range, the SC628ANP generates a fast-pulse alarm signal at 2–10 pulses per second, with a typical sound output of 88–101 dB(A) measured at 2 feet. Its low current draw of 4–30 mA makes it suitable for integration into control panels, equipment monitoring circuits, and alarm systems where clear audible notification is required.
The alarm features a rugged black 6/6 nylon housing, threaded panel-mount construction, and an included knurled mounting nut. Its operating temperature range of -30°C to +65°C supports installations in demanding equipment environments.
For marine electrical applications, the SC628ANP can serve as an audible notification device in vessel monitoring panels, equipment fault indication systems, and machinery alarm circuits, provided the installation meets applicable electrical and environmental requirements.
Manufacturer | Mallory Sonalert |
Category | Alarms and Signaling |
Item Number | SC628ANP |
Series | Sonalert |
Protections/ Certifications | cUL Recognized; NEMA 3R,4X, & 12: Approved with use of ACC03. |
Connection/Terminal | Recommended hole size is 1.25"(31.75mm). Thread front will fit standard 30mm(1.181") hole. |
Mounting Type | Panel mount |
Dimensions | 1.687" Dia (42.85mm) |
Weight | 1.6 oz |
Material | 6/6 Nylon, Color Black |
Voltage Type | AC/DC |
Spec Sheet | View Manufacturer Spec Sheet |
- Manufacturer: Mallory Sonalert Products
- Part Number: SC628ANP
- Voltage: 6–28V AC/DC
- Audible Signal: Fast pulse, 2–10 pulses per second
- Sound Output: 88–101 dB(A) typical at 2 feet
- Frequency: 2,900 ± 500 Hz
- Current Draw: 4–30 mA
- Duty Cycle: 50%
- Operating Temperature: -30°C to +65°C
- Housing: Black 6/6 nylon
- Mounting: Threaded panel mount; 1.25-inch recommended hole
- Environmental Ratings: NEMA 3R, 4X, and 12 with ACC03 accessory
- Certification: cUL Recognized
The SC628ANP provides a compact audible warning solution for applications requiring a recognizable pulsed alarm signal, flexible AC/DC power compatibility, and straightforward panel integration.
